Applications
High-quality lace fabrics with different patterns, jacquard fabrics for ladies’ intimate apparel, clothing, and home decor.
Features

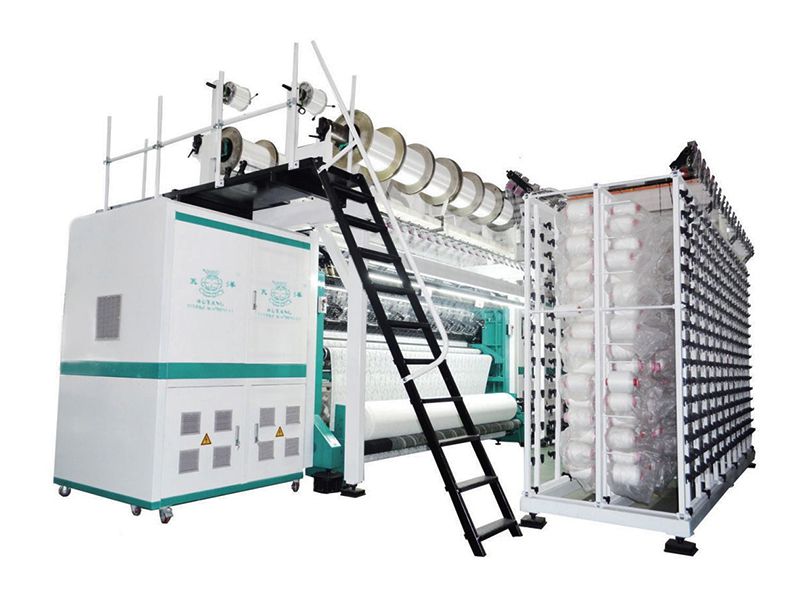

- Lace warp knitting machine utilizes eccentric-link drive mechanism.
- The combination of multi-bar and electronic controlled jacquard bar allows the producing of patterned fabric. Embossed patterns are formed by the pattern bar through stitch forming, while flat patterns are created by the ground bar though inlay lapping. The combination of both enhances the pattern effects of the fabric.
Specifications
Needle type Compound needle
Gauge E18, E24
Number of bars 61/1/32 (1 ground bar, 1 spandex bar, 1 jacquard bar, 58 pattern bars)
Working width 132"/200"
Max. speed 650 rpm
| Machine Model | Dimensions (L×W×H) | Floor Area (m²) | Machine Weight (kg) | Total Power (kW) |
| 7650×7100×3700 | 54 | 12000 | 11.25 | |
| 7250×5950×4500 | 43 | 10000 | 11.25 | |
| 7650×6000×4500 | 54 | 12000 | 11.25 |
