Applications
Jacquard curtain fabric, jacquard tablecloth, mesh fabrics for curtains, table cloths, clothing, and home decor.
Features

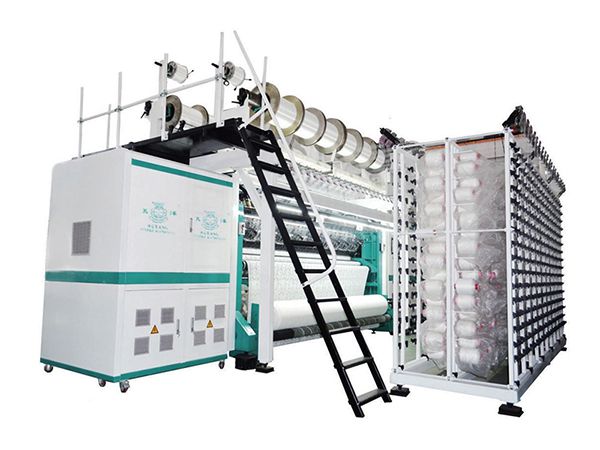

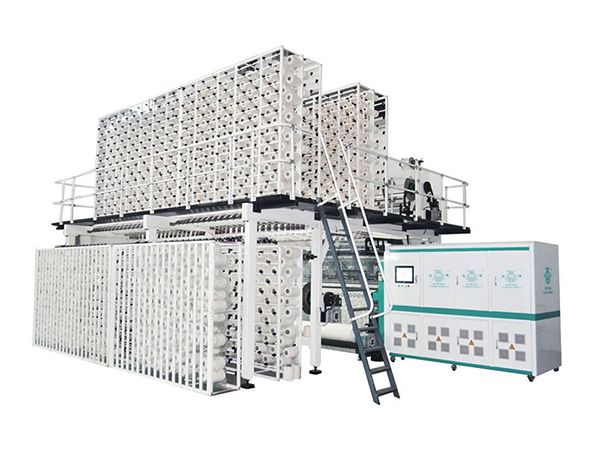

- Jacquard warp knitting machine uses a cam-link drive mechanism.

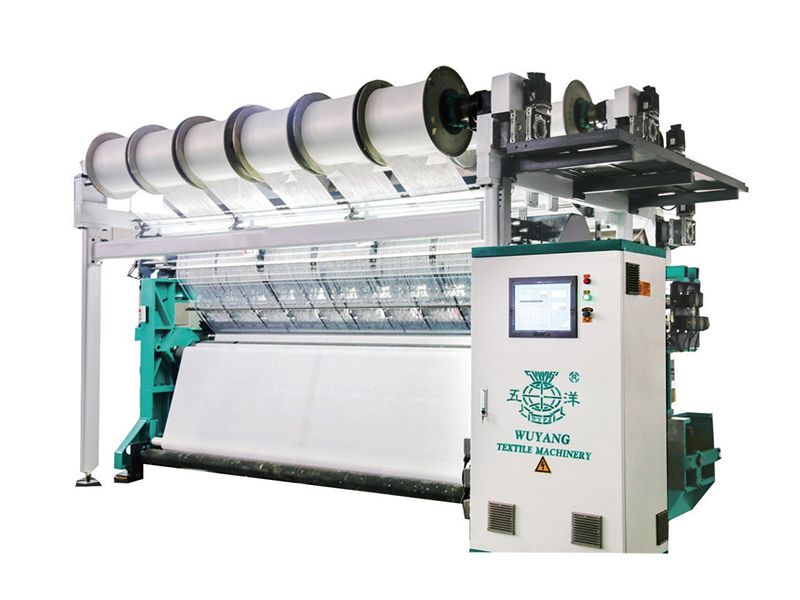

- Lace warp knitting machine combines compound needles and fall plate device.
- The lace knitting machine is equipped with electronic yarn let-off, electronic take-up, electronic jacquard bar control, and electronic guide bar control (EL) functions.
Specifications
Needle type Compound needle
Number of bars 4 bars (3 ground bars, 1 jacquard bar) - Number of bars 4 bars (2 ground bars, 2 jacquard bars at front and back of fall plate)
Gauge E18, E24
Working width 132"/200"/252"
Max. speed 550 rpm
| Machine Model | Dimensions (L×W×H) | Floor Area (m²) | Machine Weight (kg) | Total Power (kW) |
| 5800×4500×3600 | 26.1 | 10000 | 9.75 | |
| 7200×3200×3800 | 23 | 14000 | 10.25 | |
| 8330×3400×3900 | 29 | 21000 | 13.75 | |
| 5800×4000×3600 | 26 | 10000 | 10.75 | |
| 7200×3200×3800 | 23 | 14000 | 11.25 |
