Applications
Knitted ribbons, scarfs and elastic bandages, packaging cylindrical fabrics, pantyhose, and more.
Features

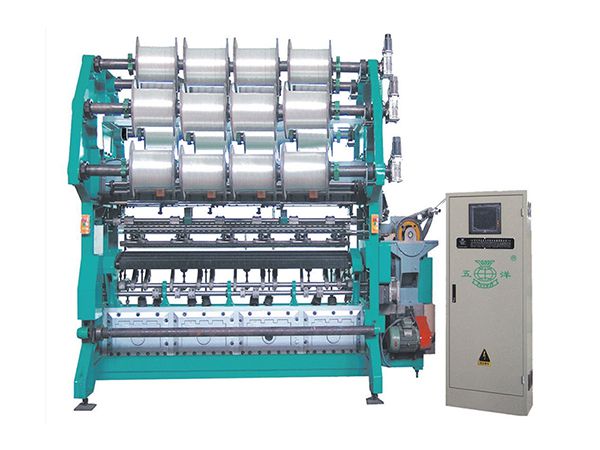

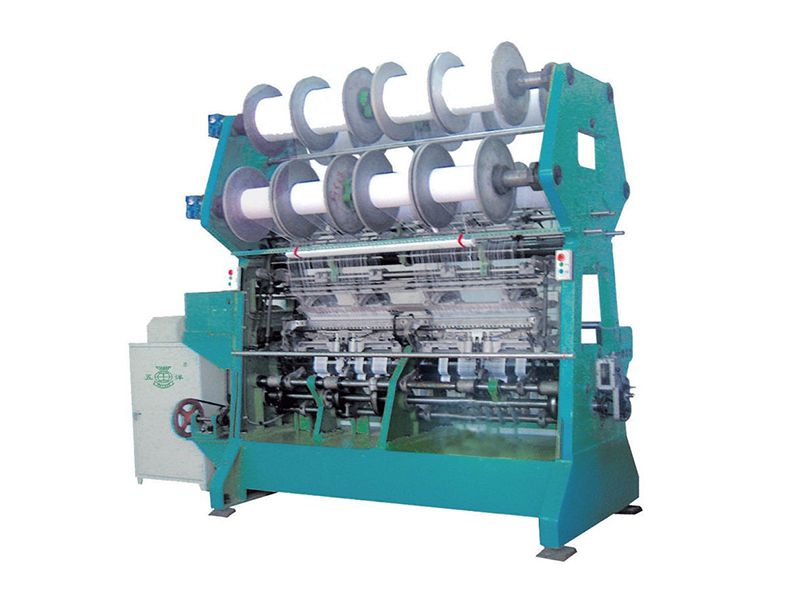

- Jacquard webbing warp knitting machine adopts open-type cam-linkage drive.
- Simple structure, easy operation and high adaptability to process changes.
Specifications
Needle type Block latch needle
Gauge E12, E16, E18, E22
Number of bars 2-16 bars
Working width 27"/54"
Max. speed 500 rpm
| Machine Model | Dimensions (L×W×H) | Floor Area (m²) | Machine Weight (kg) | Total Power (kW) |
| 1800×2300×2700 | 4.14 | 3000 | 5.77 | |
| 2900×2300×2700 | 6.67 | 3800 | 5.77 |
