Applications

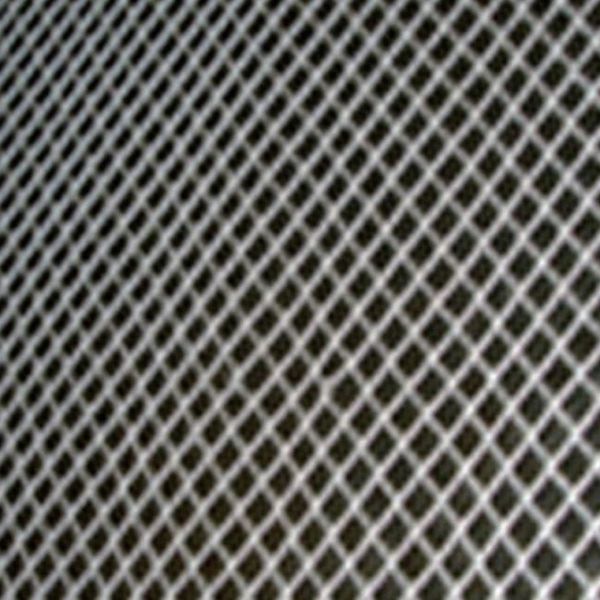

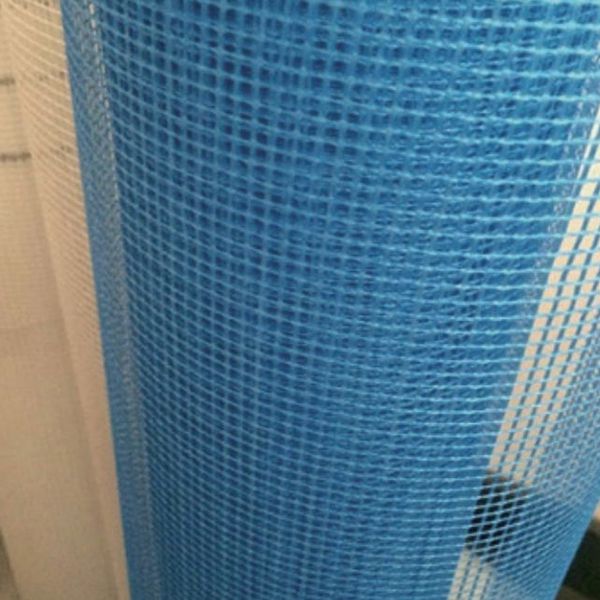

Semi-rigid fiberglass grid cloths used in aerospace and high-end mesh fabrics, etc.
Features

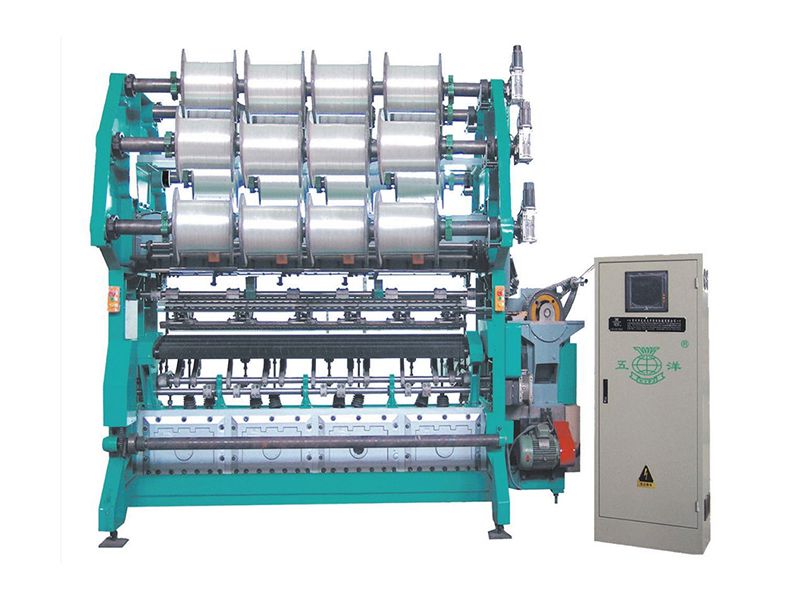

- Grid cloth warp knitting machine adopts an oil immersed cam-linkage mechanism.
- The raschel knitting machine uses compound needles.
- The textile machinery has the functions of electronic yarn let-off and electronic fabric take-up.
Specifications
Needle type Compound needle
Gauge E6, E12, E18, E22
Number of bars 6/7/8 bars
Working width 132"
Max. speed 500 rpm
| Machine Model | Dimensions (L×W×H) | Floor Area (m²) | Machine Weight (kg) | Total Power (kW) |
| GE299-132" | 6285×2100×3100 | 13.2 | 8000 | 9.25 |
