Applications
Multi-layer spacer fabrics used in mattresses pads and sandwich fabrics.
Features

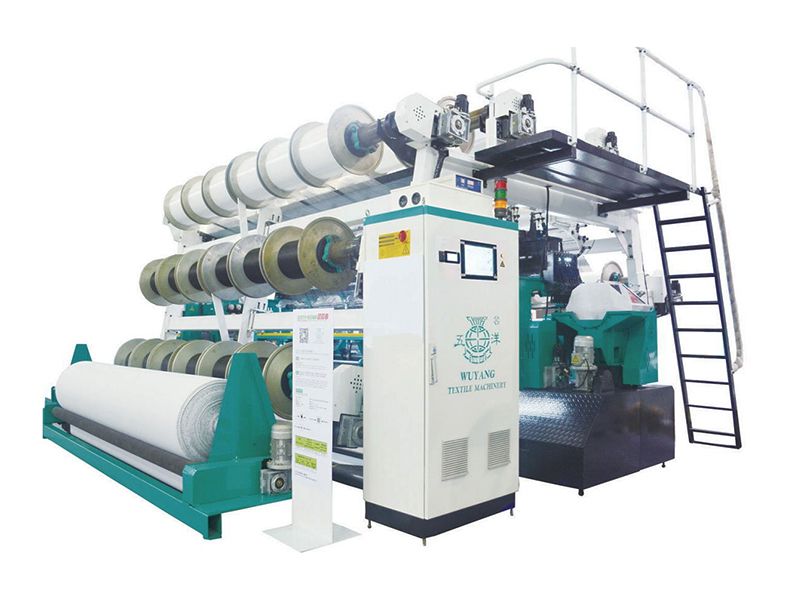

- Spacer fabric warp knitting machine uses an oil-immersed cam combined with eccentric connecting rod transmission mechanism, with the knock-over comb bar remaining steady.
- The Raschel warp knitting machine utilizes short-stroke tongue needles for faster weaving speed and fabric output speed.
- The warp knitting machinery has functions of electronic yarn let-off and electronic fabric take-up.
Specifications
Needle type Individual latch needle, block latch needle
Gauge E18, E22, E24, E28
Number of bars 5/6/7 bars
Distance between knocking-over bar 2-16mm
Working width 100"/110"/138"/170"/210"
Max. speed 1000 rpm
| Machine Model | Dimensions (L×W×H) | Floor Area (m²) | Machine Weight (kg) | Total Power (kW) |
| 4450×5500×3400 | 24.475 | 9250 | 12.5 | |
| 4800×5500×3400 | 26.4 | 10000 | 12.5 | |
| 5500×5500×3400 | 30.25 | 12000 | 14.25 | |
| 6100×5500×3400 | 33.55 | 14500 | 21 | |
| 8300×5500×3400 | 45.65 | 17500 | 21.5 |

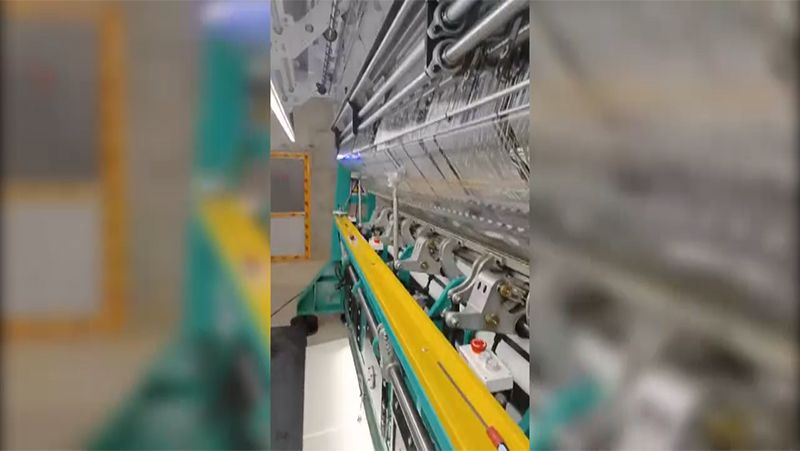

Videos
