Applications

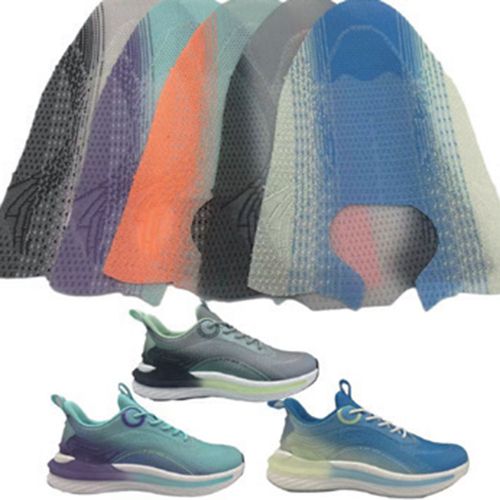

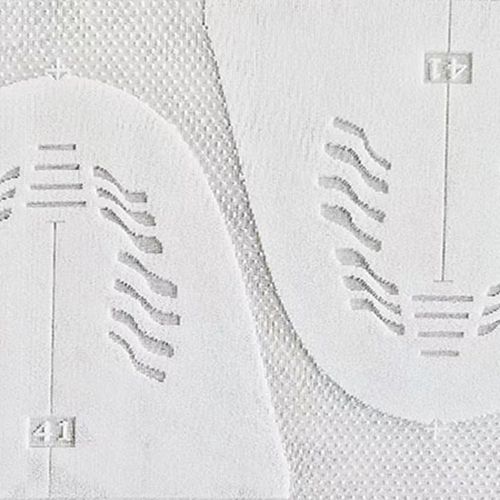

Spacer textiles with jacquard patterns used in shoes, luggage, home décor and automotive upholstery, etc.
Features

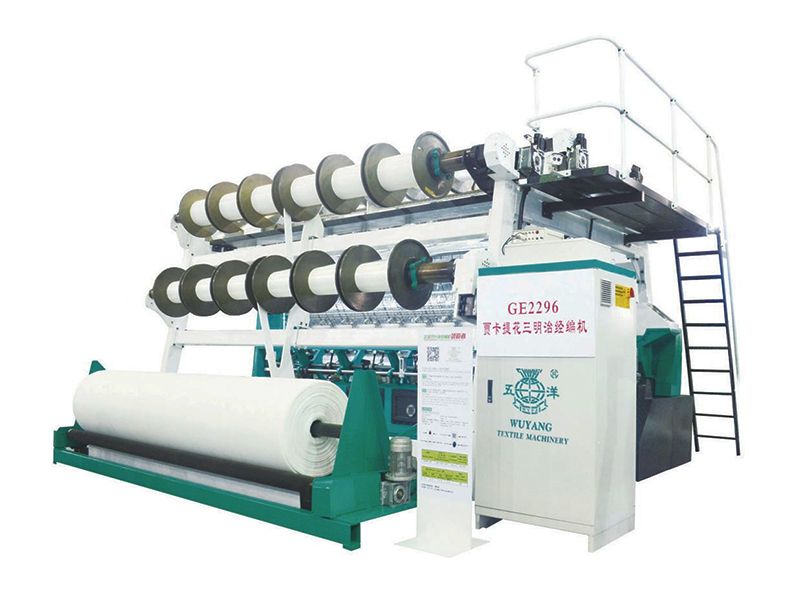

- Jacquard spacer fabric warp knitting machine uses an optimized cam connecting rod mechanism.
- The spacer fabric warp knitting machine adopts a four-bar-linkage mechanism for knitting process.
- A jacquard bar is applied in this textile machinery.
- The textile machinery utilizes short-stroke tongue needles for faster weaving speed and fabric output speed.
- Jacquard spacer fabric warp knitting machine has functions of electronic yarn let-off, electronic take-up, and independent batching.
Specifications
Needle type Individual latch needle, block latch needle
Gauge E18, E22, E24, E28
Number of bars 6 bars (5 ground bars, 2 pieces of half jacquard bar)
Distance between knocking-over bar 2-16mm
Working width 90"/110"/138"
Max. speed 650 rpm
| Machine Model | Dimensions (L×W×H) | Floor Area (m²) | Machine Weight (kg) | Total Power (kW) |
| 4100×5500×3400 | 22.55 | 8000 | 8.25 | |
| 4450×5500×3400 | 24.475 | 9000 | 12.25 | |
| 5500×5500×3400 | 30.25 | 12000 | 12.75 | |
| 6010×6010×3940 | 36.1 | |||
