Applications

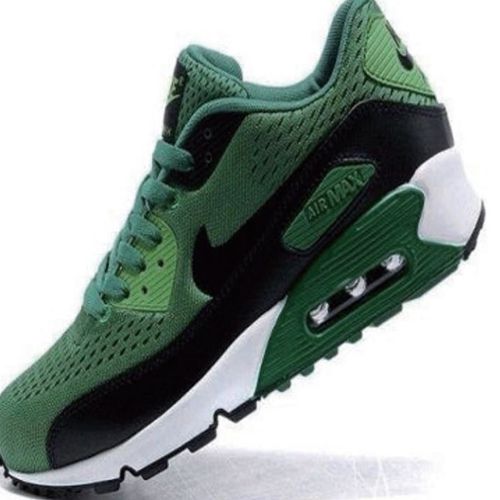

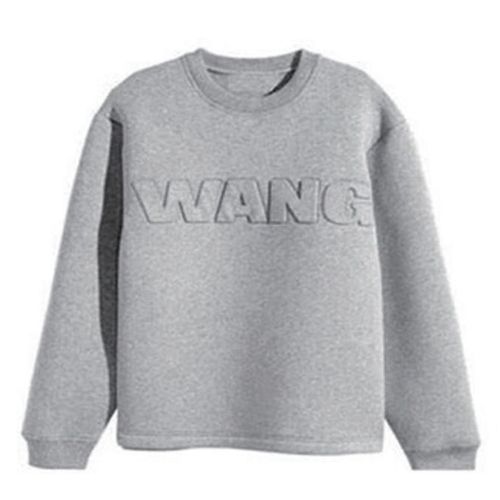

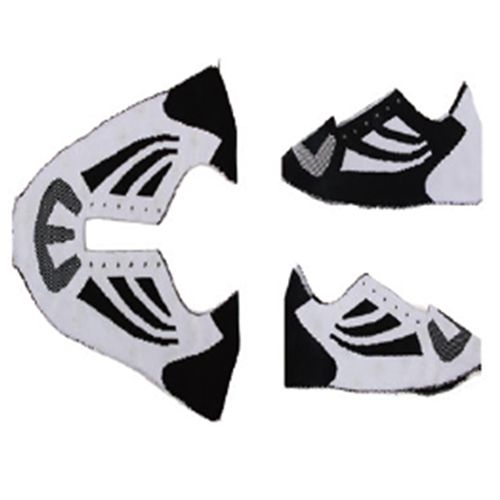

Double-sided spacer textiles with jacquard patterns used in shoes, upholstery and apparel.
Features

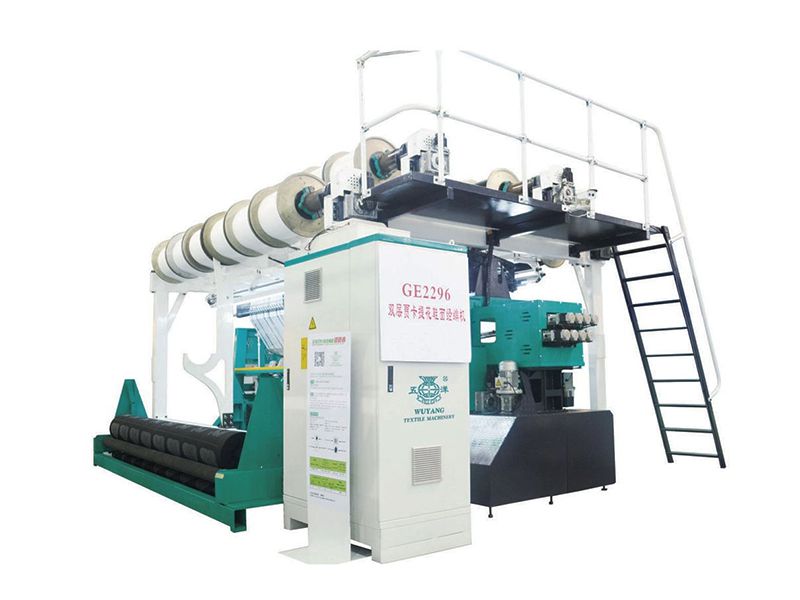

- Jacquard spacer fabric warp knitting machine uses a cam connecting rod mechanism.
- The spacer fabric warp knitting machine adopts a four-bar-linkage mechanism for knitting process.
- A jacquard bar is applied in this textile machinery.
- The textile machinery utilizes short-stroke tongue needles for faster weaving speed and fabric output speed.
- Jacquard spacer fabric warp knitting machine has functions of electronic yarn let-off, electronic guide bar control (EL), and independent batching.
Specifications
Needle type Individual latch needle, block latch needle
Gauge E18, E22, E24, E28
Number of bars 6 bars (4 ground bars, 4 jacquard bars)
Distance between knocking-over bar 2-16mm
Working width 90"/138"
Max. speed 650 rpm
Machine Model | Dimensions (L×W×H) | Floor Area (m²) | Machine Weight (kg) | Total Power (kW) |
4100×5500×3400 | 22.55 | 8000 | 17 | |
5500×5500×3400 | 30.25 | 12000 | 20.75 |
