Applications
Eco-friendly air conditioning filter materials, short, medium, and long plush jacquard fabrics for jacquard blankets, plush toys, apparel and filter fabrics.
Features

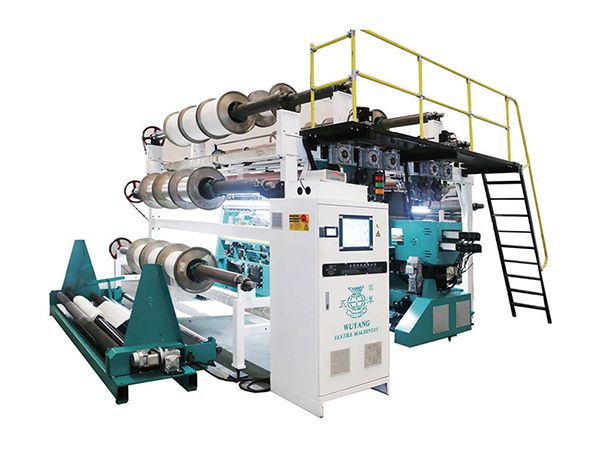

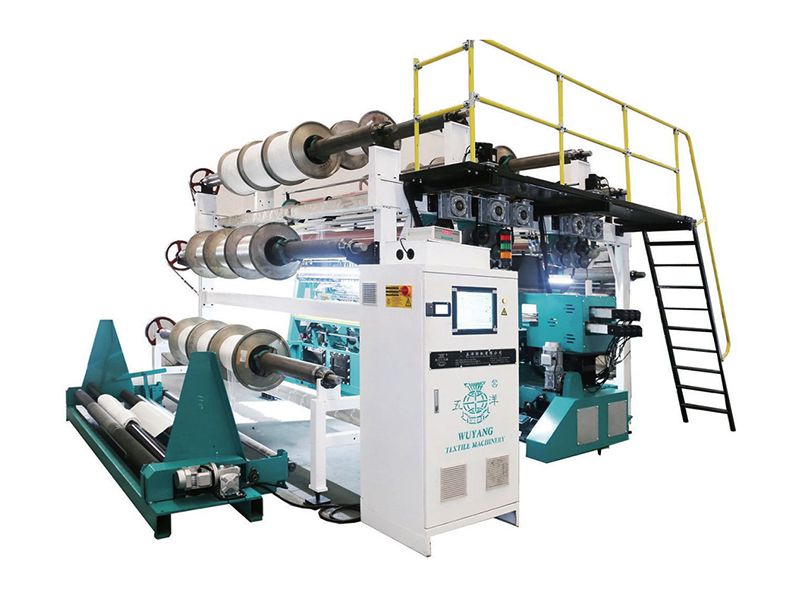

- Jacquard blanket warp knitting machine uses an oil immersed cam-linkage mechanism and 3 swinging bars.
- Raschel warp knitting machine allows for complex jacquard.
- The textile machinery has functions of electronic yarn let-off and EL pattern drive with electronic guide bar drives.
- Finished plush products have excellent quality with minimal shedding.
Specifications
Needle type Individual latch needle, block latch needle
Gauge E16, E18, E22
Number of bars 7 bars
Distance between knocking-over bar 10-50mm
Working width 100"/110"
Max. speed 700 rpm
| Machine Model | Dimensions (L×W×H) | Floor Area (m²) | Machine Weight (kg) | Total Power (kW) |
| 3700×7270×3750 | 26.9 | 8000 | 20.5 | |
| 4350×7270×3750 | 31.6 | 9350 | 20.5 |
