Applications
Eco-friendly air conditioning filter materials, short, medium, and long plush fabrics and blankets with jacquard patterns.
Plush fabrics used in plush toys, home upholstery.
Features

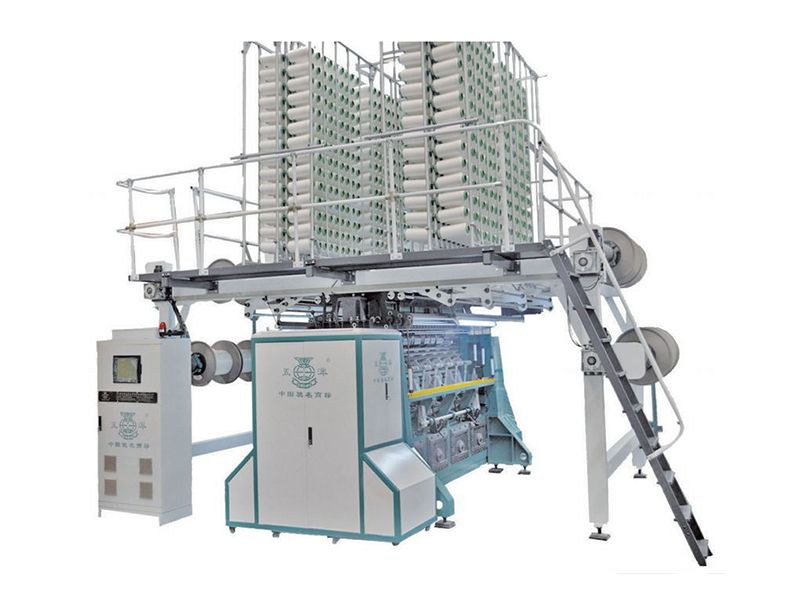

- Double-Sided jacquard fabric warp knitting machine uses an optimized cam-linkage mechanism.
- Raschel warp knitting machine has functions of electronic jacquard bar, electronic yarn let-off and electronic fabric rake-up.
Specifications
Needle type Individual latch needle, block latch needle
Gauge E16, E18, E22
Number of bars 5 bars (4 ground bars, 1 jacquard bar)
Distance between knocking-over bar 3-16mm
Working width 90"
Max. speed 600 rpm
| Machine Model | Dimensions (L×W×H) | Floor Area (m²) | Machine Weight (kg) | Total Power (kW) |
| GE2286-90" | 4100×9000×4500 | 36.9 | 9500 | 11 |
