Applications
Blankets and plush fabrics used in apparel, blankets, plush toys, etc.
Features

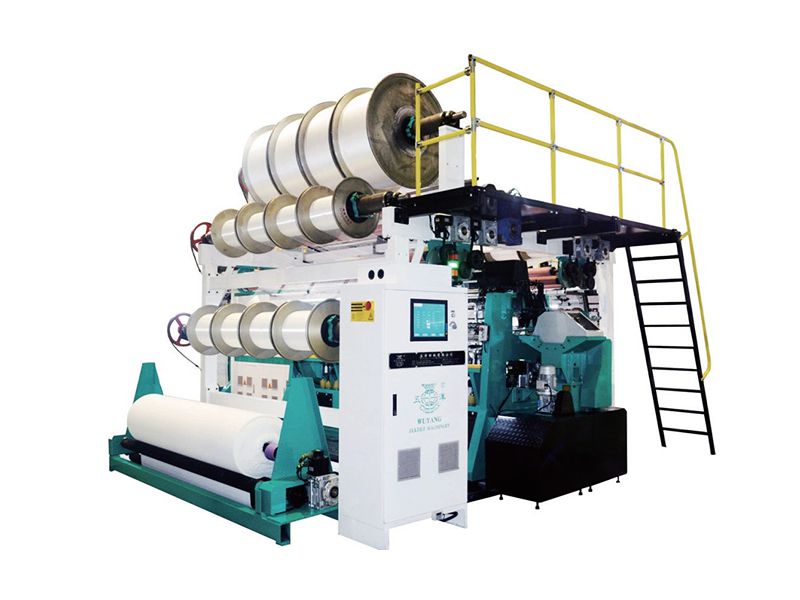

- Blanke warp knitting machine uses an oil immersed cam-linkage mechanism and fixed ground bars.
- Raschel warp knitting machine has functions of electronic yarn let-off, electronic fabric take-up and electronic guide bar control (EL).
- The plush has a pile height of 5-25mm.
Specifications
Needle type Individual latch needle, block latch needle
Gauge E16, E18, E22
Number of bars 5 bars
Distance between knocking-over bar 10-50mm
Working width 90"/100"/110"/138"/170"
Max. speed 850 rpm
| Machine Model | Dimensions (L×W×H) | Floor Area (m²) | Machine Weight (kg) | Total Power (kW) |
| 3510×6400×3880 | 22.4 | 8000 | 9 | |
| 3760×6400×3880 | 24.1 | 8500 | 9 | |
| 4160×6400×3880 | 26.62 | 10000 | 10 | |
| 4900×6400×3880 | 31.4 | 11500 | 10.25 | |
| 6100×6400×3880 | 39 | 13500 | 15.5 |

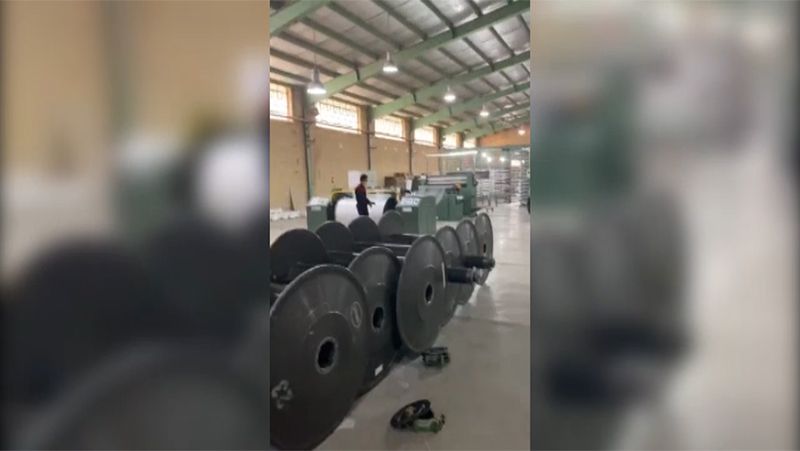

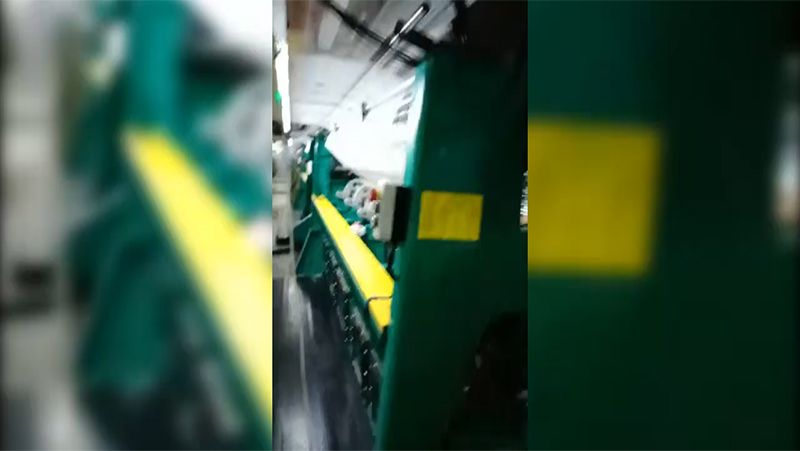

Videos
