Applications
Multi-layer imitated rabbit fur fabrics used in clothing
Features

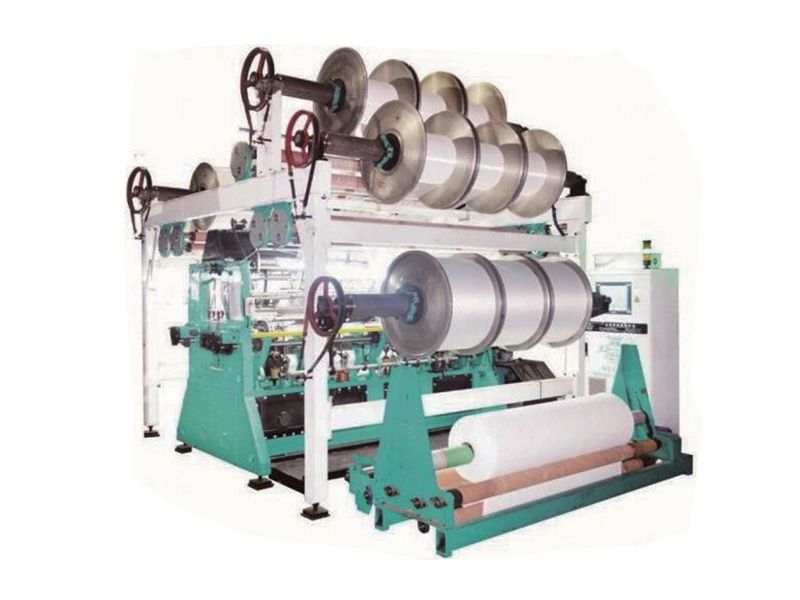

- Multilayer faux fur warp knitting machine uses an oil immersed cam-linkage mechanism and a fixed knock-over comb bar.
- The spacer fabric warp knitting machine features an easy operation sinker system, allowing automatically adjusting of the distance between knocking over bar, and the ground bar.
- Raschel warp knitting machine utilizes synchronous belt drive for electronic yarn let-off and electronic fabric take-up.
- The plush has a pile height of 20-50mm.
Specifications
Needle type Individual latch needle, block latch needle
Gauge E16, E18, E22
Number of bars 6/7 bars
Working width 90"/100"/110"/138"
Max. speed 500 rpm
| Machine Model | Dimensions (L×W×H) | Floor Area (m²) | Machine Weight (kg) | Total Power (kW) |
| 3900×6050×3750 | 23.6 | 8000 | 17 | |
| 4200×6050×3750 | 25.4 | 8500 | 18 | |
| 4550×6050×3750 | 27.5 | 10000 | 18 | |
| 5100×6050×3750 | 30.8 | 12000 | 19 |
